A T-Box with no network is just an expensive data logger. The cellular subsystem carries every telemetry upload, every remote command, every OTA image and every emergency call, often across multiple countries and decades of network generations. Choosing the modem category, SIM strategy, antenna layout and registration behaviour is therefore a system-level decision, not a component purchase. This article maps the automotive connectivity chain from modem to cell tower and explains the engineering trade-offs behind each choice.

Choosing the Air Interface: Cat.1, Cat.4, 5G and C-V2X

LTE user-equipment categories define peak rate and complexity, and telematics rarely needs the fastest:

• LTE Cat.1 bis — roughly 10 Mbit/s downlink with a single antenna, low cost and low power; the mainstream choice for telemetry, tracking and eCall where bandwidth is modest.
• LTE Cat.4 — about 50 Mbit/s with receive diversity; selected where Wi-Fi hotspotting, video or large OTA packages are expected.
• 5G (NR) — used on premium platforms needing gigabit downloads, ultra-low latency or future V2X services, at higher cost and power.
• C-V2X — two complementary paths: the PC5 sidelink talks directly vehicle-to-vehicle and vehicle-to-infrastructure without a network, while the Uu path uses the cellular network for wide-area services.

Designs must also keep 2G fall-back in mind for regions where LTE coverage is patchy, because an emergency call must complete on whatever network is available.

Network Registration: What Happens at Power-Up

When the T-Box wakes, the modem scans supported bands, synchronises to the strongest cell, and runs an attach procedure with the core network — authentication with the SIM, location registration and default-bearer establishment before any IP packet flows. Firmware stores operator profiles and band lists to make this deterministic rather than a blind search; for emergency calls the modem is permitted to attach to any available network regardless of subscription, a regulatory privilege built into 3GPP standards. Robust designs monitor registration state and implement bounded retry and SIM-refresh logic so temporary network rejection never leaves the vehicle permanently offline.

SIM Strategy: Removable UICC, eSIM and iSIM

The SIM identifies the vehicle to operators. Three forms coexist: removable nano-UICC for flexible logistics; embedded eSIM (MFF2 chip) soldered for vibration and temperature reliability; and integrated iSIM inside the modem SoC. For global platforms, GSMA remote-SIM-provisioning lets multiple operator profiles be downloaded over the air, so a vehicle manufactured in one country can adopt a local profile at its destination — essential for export models and cross-border fleets. Profile-switch policy, steering lists and roaming agreements are managed jointly with connectivity providers.

Antenna Engineering: Where Designs Are Won and Lost

A premium modem cannot overcome a poor antenna installation. Automotive cellular systems use a main plus diversity (and often MIMO) antenna, while GNSS needs a right-hand circularly polarised element with clear upward sky view. Engineers control return loss (VSWR), radiation efficiency and — critically — isolation between antennas and from noise sources such as display cables and DC-DC converters. Shark-fin modules, glass antennas and PCB trace antennas each trade performance for packaging; coaxial losses and ground-plane geometry are modelled in 3D simulation and verified in over-the-air chambers.

Protocols Above the Air Link

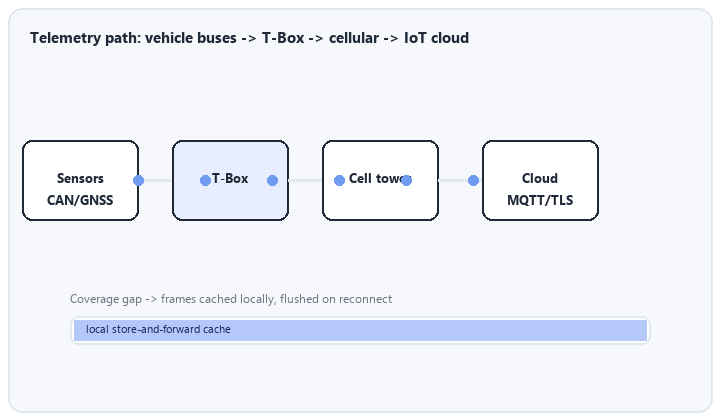

Once attached, the T-Box exchanges data using TCP-based regulatory protocols such as China's GB/T 32960 for EV monitoring or JT/T 808 for commercial-vehicle terminals, MQTT for cloud IoT platforms with efficient pub/sub telemetry, and TLS 1.2/1.3 for confidentiality and mutual authentication. Local caching stores frames during coverage gaps and flushes them on reconnection, guaranteeing no gaps in the data record. Protocol choice, upload cadence and compression directly determine cellular bill cost at fleet scale.

Practical Design Guidance

• Right-size the modem category to the data plan; spend saved budget on antenna and certification instead of unused throughput.
• Validate band support and operator certification (GCF, carrier-specific) for every sales region, including 2G fall-back for emergency calls.
• Design eSIM profile lifecycle and roaming policy before SOP, not after the first export shipment.
• Run OTA and emergency-call tests at weak-field signal levels — −100 dBm and below — where real failures appear.

Weijiang Power: Stable Power for the Connected Chain

Cellular transmit bursts draw sharp current pulses that expose weak power design. Weijiang Power supplies low-internal-resistance, wide-temperature NiMH and lithium backup cells and custom packs that hold the T-Box rail through transmit peaks, brown-outs and crash disconnects, with automated welded assembly and complete compliance documentation. Send us your pulse profile and hold-up requirement, and we will design the backup power that keeps your vehicle reachable.
