A modern vehicle receives dozens of software updates over its life, most delivered remotely through the T-Box. Over-the-air updating at automotive scale is a problem of cryptography, memory layout and failure recovery as much as of connectivity: a failed update to a braking, battery or connectivity controller is not an inconvenience but a safety event. This article explains how a secure OTA campaign is structured, why A/B partitions replaced in-place flashing, how the secure boot chain anchors trust in hardware, and where the T-Box fits as the vehicle's update master.

The OTA Campaign Architecture

A typical flow runs from cloud to ECU in stages: the backend manages vehicle cohorts and version inventories, signs update packages and pushes a campaign notification; the T-Box downloads the package over cellular or Wi-Fi, verifying checkpoints as it arrives; an update manager inside the vehicle decides timing against vehicle state (parked, charging, adequate battery); and target ECUs are flashed over CAN-FD or automotive Ethernet using the UDS sequence described in our CAN/UDS article. Telemetry reports each vehicle's outcome back to the cloud, giving the campaign manager a closed success/failure loop and the ability to pause a rollout the moment anomaly rates rise.

Delta Updates and Download Strategy

Full ECU images over cellular are expensive, so platforms use differential (delta) packages — binary diff algorithms such as bsdiff encode only the bytes that changed between old and new firmware, shrinking a 200 MB update to a few megabytes. The vehicle reconstructs the full image locally against its known current version, which is why precise version inventory matters: a delta only applies to the exact baseline it was built from. Downloads are resumable, staged to free flash and scheduled preferentially on unmetered networks.

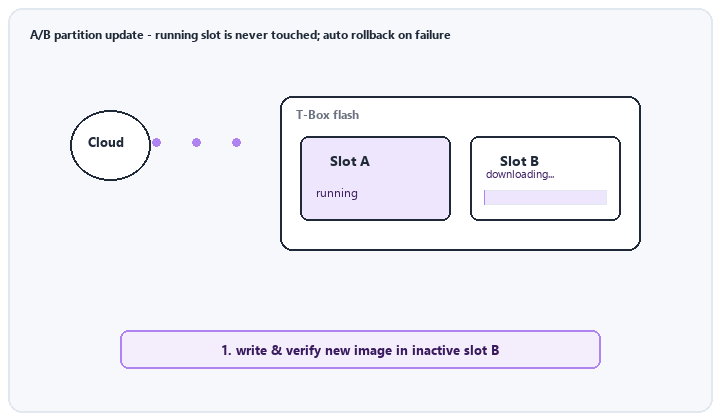

A/B Partitions: Updating Without Risking the Device

The safest memory layout keeps two complete copies of the firmware, conventionally A and B slots. The system runs from the active slot while the update is written, verified and prepared in the inactive slot — the running vehicle is never touched. On the next reboot the bootloader tries the newly written slot; if it boots and confirms its health within a defined window, it is marked active. If anything fails, the bootloader simply falls back to the untouched previous slot on the next start. This makes a bad update self-healing and removes the dangerous window in which an interrupted in-place flash leaves no runnable firmware at all.

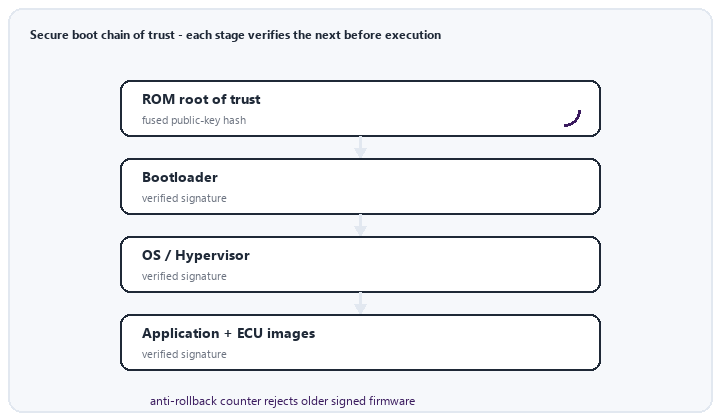

The Secure Boot Chain of Trust

Update security ultimately rests on secure boot. Trust begins in immutable ROM code and cascades stage by stage, each layer verifying the digital signature of the next before executing it:

• Root of trust — public-key hashes fused into the hardware at manufacture cannot be changed in the field.
• Stage verification — ROM verifies the bootloader, which verifies the OS/hypervisor, which verifies applications and ECU images, including OTA packages.
• Anti-rollback — a monotonic version counter in secure storage rejects older signed images, preventing attackers from reverting to a version with known vulnerabilities.
• Secure storage and key handling — signing keys never leave backend HSMs; the vehicle holds only public verification material, and secrets reside in a secure element or TrustZone world.

The T-Box as a Security Boundary

Because the T-Box is the only ECU exposed to the public internet, it is the vehicle's perimeter firewall. Hardening includes: mutually authenticated TLS for cloud sessions; secure on-board communication (authenticated, freshness-protected CAN messages under AUTOSAR SecOC) so a compromised T-Box cannot freely command internal ECUs; intrusion detection logging; least-privilege service accounts; and rapid vulnerability-response processes aligned to standards such as ISO/SAE 21434 and UN R155/R156, which make cybersecurity management and update capability a type-approval obligation in many markets.

Engineering a Dependable Update Campaign

• Pre-condition every update: sufficient state-of-charge, stable park state, enough flash and guaranteed no interruption window.
• Use A/B slots with automatic rollback and explicit health-commit criteria.
• Sign every package end to end, verify before activation, and enforce anti-rollback counters.
• Roll out in staged cohorts with kill-switch monitoring; keep every ECU recoverable over UDS even after worst-case failure.

Weijiang Power: Power Assurance for Safe Updates

An ECU must not lose power mid-update. Weijiang Power supplies wide-temperature NiMH and lithium backup cells and custom packs that let the T-Box ride through supply interruption and complete or safely abort a flash cycle, with long calendar life matching the vehicle's update-support window. Send us your rail design and worst-case update duration, and our engineers will size the hold-up power behind a fail-safe OTA strategy.
